Escutcheon
| Characteristic | Description |
|---|---|
| Purpose | For the aesthetic finish of copper (Cu) pipelines; where they pass through a wall, it covers drilling imperfections and allows relief of expansion movement. |
| Properties | The parts are made of high-quality PP copolymer with added additives and color, using the injection molding process, which gives the product elasticity and thermal stability for use in the temperature range from -10 to +118 °C. The product design allows installation on an already completed pipeline. In a two-pipe system with our double-row brackets installed, it enables a high-quality aesthetic installation, since the pipeline center distance coincides with the tangent of the outer diameter. |

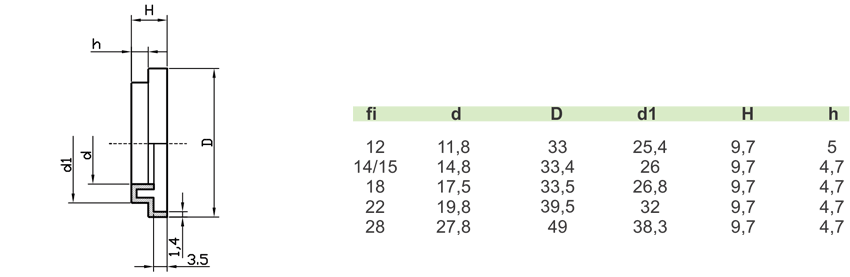

| Dimensions | According to the drawing and the attached table. |
| Color | White |
| Packaging | According to the attached table. Basic packaging in a PE bag, bulk packaging in a cardboard box. |
| Item code | Designation | Packaging (pcs), basic/bulk |
|---|---|---|
| 03-04 | fi 12 | 100/4000 |
| 03-05 | fi 14/15 | 100/4000 |
| 03-06 | fi 18 | 100/4000 |
| 03-07 | fi 22 | 100/3000 |
| 03-08 | fi 28 | 100/2000 |
